Architectural Monster 4/4

So I finished the last of the architectural monsters, and since it was the fourth one I went with a theme of squares (although it has 3 heads 🤔). To complete things I decided to dedicate one short post to this piece, even though it feels like an addendum to the previous one (Kinetic Pieces Annotated).

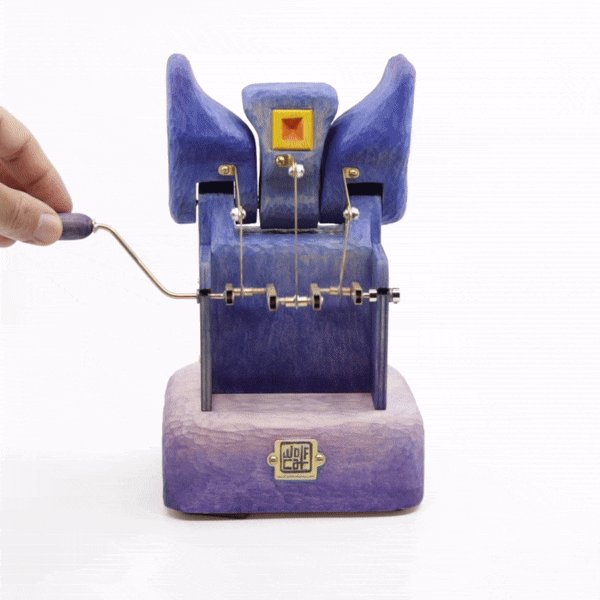

There is a short assembly video for the piece above which you can watch on youtube, instagram or tiktok (I know, it's a lot 😅).

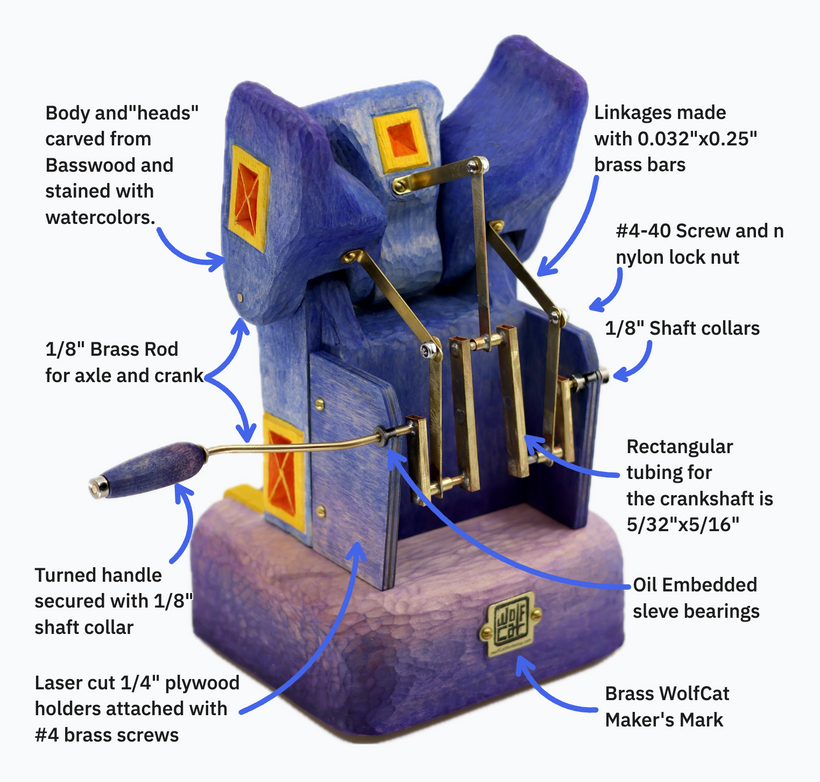

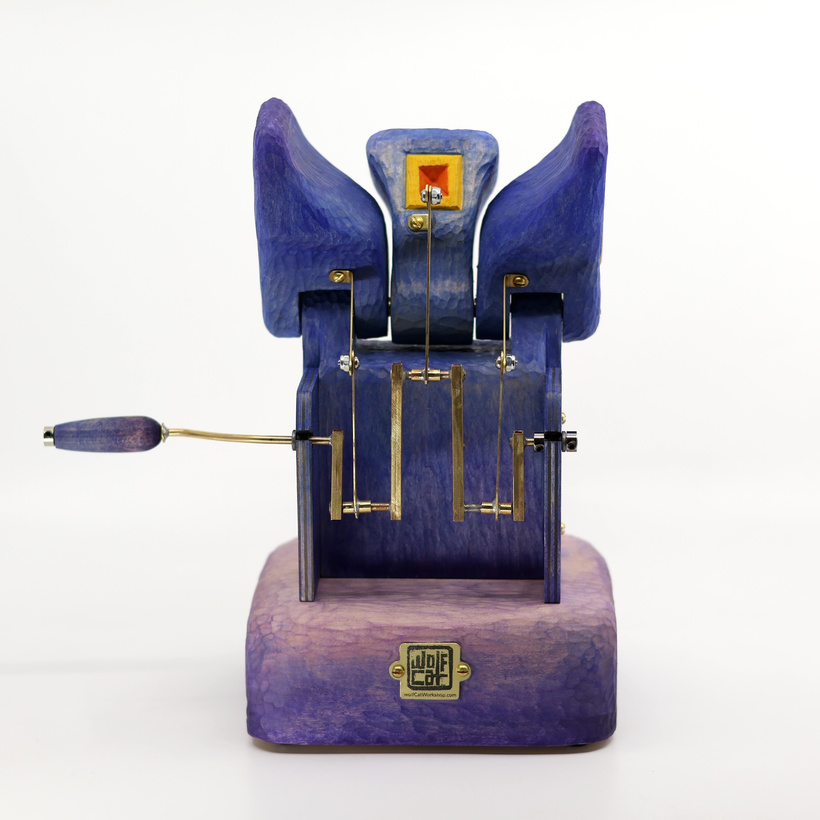

Here is the annotated image:

 The most elaborate part here was the crankshaft, which is that zigzag component that turns rotating motion into reciprocal motion for the 3 "heads".

In this build I also used those oil embedded sleeve bearings i mentioned last time to make the rotation really smooth.

Other Updates

I want to get back to the watercolor zine but this month I didn't manage to finish a full page. I've been experimenting with these Escher-Style morphing patterns that I want to incorporate into a full illustration, here is an example of a sketchbook page:

That's it for now, I'll see you in the next one, thank you so much for following along!

federico.
