One Month of Small Machines

Daily challenges are a fun way of stretching your creativity. Years ago I worked on the National Novel Writing Month challenge and I’ve done a drawing a day for a month before. This time I joined the makevember challenge after I read about it on the Make Magazine Blog and made 29 automata in a month.  In short, the makevember manifesto proposed:

Every day in November make a thing – if you can’t do it every day then do what you can, but the idea is to push yourself to work daily and with less procrastination. Do not attempt to put your ducks in a row first.

The first project I made set the tone for the rest of the month. That wasn’t my intention but I liked the aesthetic of the first pieces so I kept on going with the same materials and look for the rest of the month. My first piece was a simple automaton and I used the materials I had on my desk. Paper clips, a wooden block left over from the Opposable Thumbs Podcast challenge, and some popsicle sticks. The A-HA moment from these projects was when I discovered that using paper gives these machines a very organic feel. Some of them would look very stiff and mechanical otherwise. Paper is also very easy to work with and you can make many versions and experiment freely. Paper is versatile, it can be made to function as a structural element, or spring, or washer, or decoration. Even 2-dimensional shapes can jump to life with simple motions when made out of paper.

One wonderful bonus of posting these projects on my twitter account was the positive response from the STEAM and maker educator crowd. I saw many projects that were inspired by my own and there are few things as rewarding as that. @grajohnt made a 3D printed base with a moving hand, Donald Bell from Maker Project Lab made a flying turkey and an octopus using a cardboard base, the walking man from day 6 saw a good number of variations including a baseball card, skateboarder, and a cat on a tightrope.

And don’t forget this wonderful project from the kids at the Escuela AURO in Barcelona, they made a video and even sent me some beautiful handwritten letters.

I’ll leave you a with a gallery of all the creations in chronological order and I’ll discuss some more details below. You can also see them as collection on Twitter, on my giphy.com channel, as the original videos on my Instagram page (links to individual days:  2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30). Or you can watch all of them in this 6-minute video compilation I uploaded to youtube.

Gallery
November 2
November 3
November 4
November 5
November 6

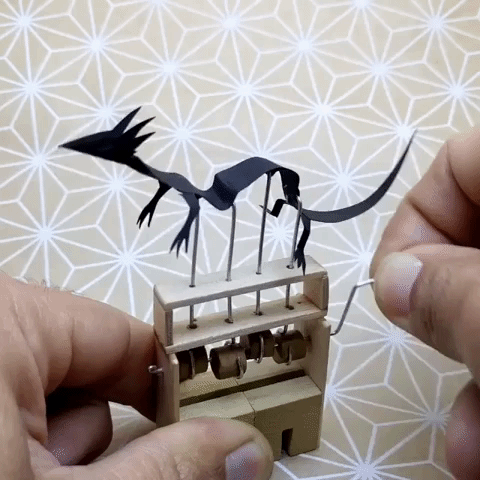

November 7
November 8
November 9
November 10
November 11
November 12
November 13
November 14
November 15
November 16

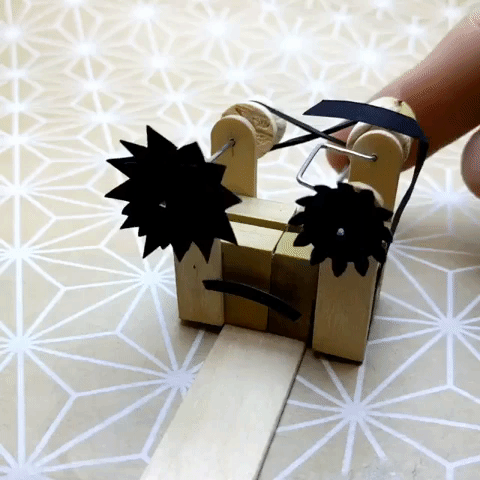

November 17

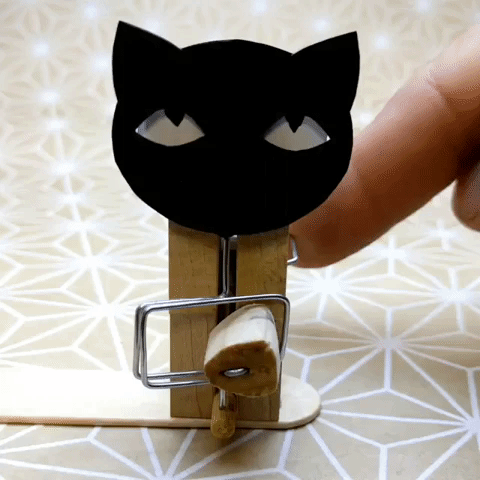

November 18

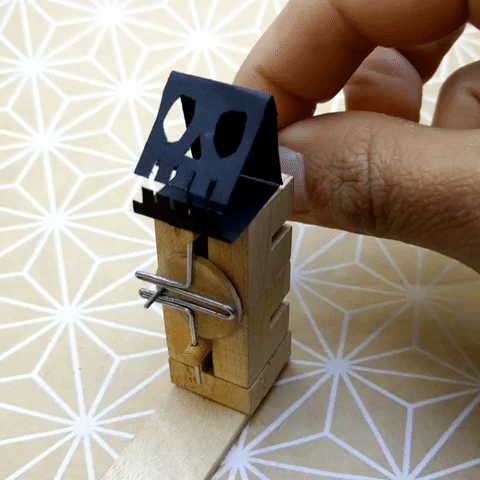

November 19
November 20
November 21
November 22
November 23
November 24
November 25
November 26
November 27
November 28
November 29
November 30
Details

The base for most of these was made using small 0.75 in x 0.75 in cubes I had cut from a 0.75 in square hardwood dowel I got at the hardware store. Poplar to be specific, which explains the green tint. I limited myself to common materials and tools (although at times I was tempted to cut some gears on the CNC). I used the following materials and supplies:

  • 3/4″ wood cubes
  • Tongue depressors and popsicle sticks
  • “Jumbo” size paper clips
  • Round wood dowels 1/4″ and 3/8″ in diameter
  • Bamboo skewers
  • Rubber bands
  • Sewing pins
  • Black, white, and tracing paper
  • Cyanoacrylate glue (aka superglue) for bonding wood to wood, and wood to metal, and white school glue for paper
  • Sandpaper

The tools used were not extraordinary:

  • Scissors (for cutting paper)
  • X-Acto precision knife (cutting paper and wood)
  • Needle nose pliers and cutters (wire bending and cutting)
  • A rotary tool (for drilling holes)
  • Small wood saw (for cutting wood)
  • Handheld drill (for shaping dowels into pulleys)

The process for each piece was different. Sometimes I started with a very specific idea of what I wanted overall, sometimes I was curious about using a particular mechanism and built that before the paper character, and sometimes I started with the gesture I wanted and tried to make it work.

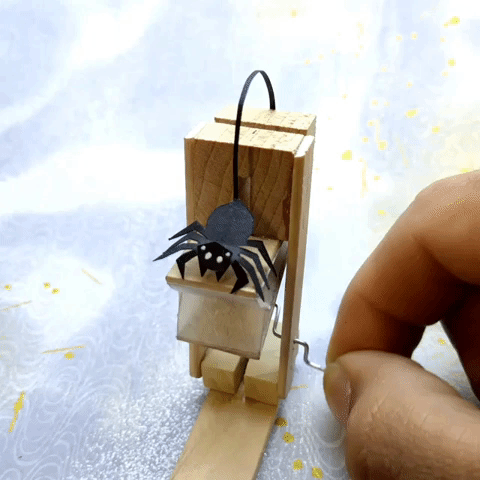

There was a lot of tinkering, some happy accidents and a fair amount of frustration. One book I kept on my bedside table for inspiration was the classic 507 mechanical movements and I often consulted the companion website 507movements.com where some of the animations are much more clear than the original diagrams. I took a few hints and inspiration from Rob Ives who is an amazing creator of paper-based moving projects. His bellows diagram was helpful for making days 27 and 29.

Day 22 uses the uncanny crowned pulley and if you want an explanation of how it works Matthias Wandel made a really good video. Day 16 was inspired by the “crankies” my friend Candice told me about, the crankie factory website has all the resources you need if you want to build your own.

A few people asked me how to get started making automata, my favorite book so far has been Karakuri by Keisuke Saka. The models are made out of paper, which adds another layer of complexity, but also requires very little to get started. The first 10 models are basic mechanisms and are a really good introduction. If you don’t mind working with paper this is a nice book because you can get started building things right away with minimal tools. If you want to give the papercraft style a swing without spending too much money you can download Rob Ives’ agreeable sheep for free.

I didn’t set out to write a how-to article but if you want more details on specific mechanisms or building techniques please send me a message. Thanks for reading!
